 Hi peeps. I have a fully modular power supply it is an XFX pro 1050W. It has sadly had a lot of issues, due to corona virus...

You may LAUGH, but at the start of the lock downs, the power company and the water works have been dropping almost daily in some weeks.  Obviously my poor unit has had a breakdown,  and I've had to gently start it like catching a clutch on a car.

I bought a new one, called a gigabyte P850GM, but i have a cable of 12 slots to fit,  I'm not positive but that's my gpu??? Anyway, this bloody thing only has a 10 slot hole, and every one i look at online has the same.  Please can someone advise me?

I've never had the problem of being to big before 😅

Link to comment
Share on other sites



  • Member ID:  25355
  • Group:  **- Inactive Registered Users
  • Followers:  31
  • Topic Count:  257
  • Topics Per Day:  0.10
  • Content Count:  5785
  • Content Per Day:  2.17
  • Reputation:   9113
  • Achievement Points:  63247
  • Solved Content:  0
  • Days Won:  132
  • Joined:  12/14/16
  • Status:  Offline
  • Last Seen:
  • Birthday:  01/05/1954
  • Device:  Windows

1 hour ago, Bazza said:

 Hi peeps. I have a fully modular power supply it is an XFX pro 1050W. It has sadly had a lot of issues, due to corona virus...

You may LAUGH, but at the start of the lock downs, the power company and the water works have been dropping almost daily in some weeks.  Obviously my poor unit has had a breakdown,  and I've had to gently start it like catching a clutch on a car.

I bought a new one, called a gigabyte P850GM, but i have a cable of 12 slots to fit,  I'm not positive but that's my gpu??? Anyway, this bloody thing only has a 10 slot hole, and every one i look at online has the same.  Please can someone advise me?

I've never had the problem of being to big before 😅

Look carefully at connectors some you can take bits off 'I have a cable of 12 slots to fit' your m'bd or the cable connector? So your Motherboard has a 10 slot hole. I think you're mixing up the 20 pin slot with the 24 is it a total of 10 holes? which don't make sense

Link to comment
Share on other sites



  • Member ID:  23498
  • Group:  ++ Minecraft Admin
  • Followers:  12
  • Topic Count:  106
  • Topics Per Day:  0.03
  • Content Count:  700
  • Content Per Day:  0.23
  • Reputation:   229
  • Achievement Points:  5750
  • Solved Content:  0
  • Days Won:  1
  • Joined:  11/12/15
  • Status:  Offline
  • Last Seen:
  • Device:  Linux

it seems to be marked well what goes where

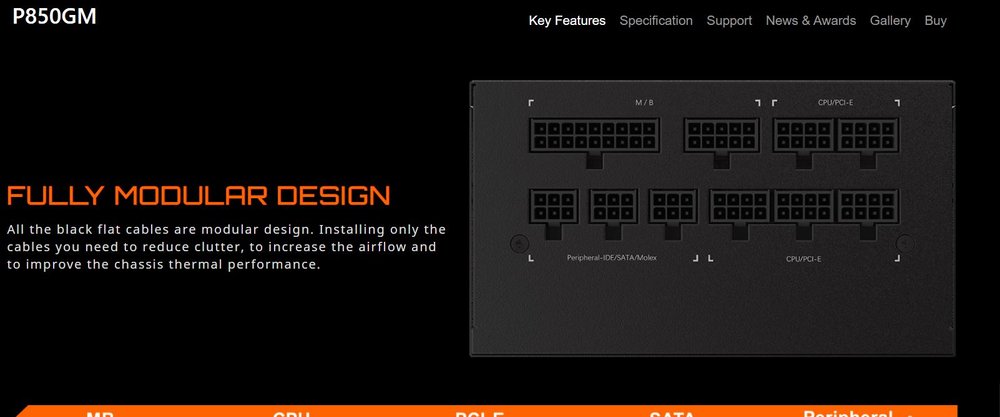

gigabye power supply 850.JPG

Link to comment
Share on other sites



  • Member ID:  23628
  • Group:  ** Registered Users
  • Followers:  1
  • Topic Count:  33
  • Topics Per Day:  0.01
  • Content Count:  335
  • Content Per Day:  0.11
  • Reputation:   215
  • Achievement Points:  2265
  • Solved Content:  0
  • Days Won:  0
  • Joined:  11/26/15
  • Status:  Offline
  • Last Seen:
  • Device:  Windows

Gpu will be any of the connectors marked "cpu/pci-e" The motherboard will use BOTH conectors within the marked brackets, the 10pin and the 18 pin which make up the 24 pin connector.

Edited by Tw33tle_Dee
Link to comment
Share on other sites



  • Member ID:  389
  • Group:  *** Clan Members
  • Followers:  44
  • Topic Count:  290
  • Topics Per Day:  0.05
  • Content Count:  4407
  • Content Per Day:  0.83
  • Reputation:   3554
  • Achievement Points:  36061
  • Solved Content:  0
  • Days Won:  38
  • Joined:  09/14/09
  • Status:  Offline
  • Last Seen:
  • Birthday:  01/01/1970
  • Device:  Android

Whoa

get your self a multimeter to check voltage for cpu , for i fried my motherboard with damb ass cooler master PSU that had the connectors crossed  see pic below Note CPU power comes in 2 flavours  4 or 8 wire, if PSU has only 4  and MB  has 8 ....look closley at 8 for lock tang to line up with 4 wire lock  EPS = CPU power






Bazza

best get your Motherboard manual out and read it  cover to cover

look at MB layout for connections

Tip: use a AVR (automatic voltage regulation) UPS  would of saved your  1050w PSU from brown out or surge

Edited by KaptCrunch
Link to comment
Share on other sites



  • Member ID:  389
  • Group:  *** Clan Members
  • Followers:  44
  • Topic Count:  290
  • Topics Per Day:  0.05
  • Content Count:  4407
  • Content Per Day:  0.83
  • Reputation:   3554
  • Achievement Points:  36061
  • Solved Content:  0
  • Days Won:  38
  • Joined:  09/14/09
  • Status:  Offline
  • Last Seen:
  • Birthday:  01/01/1970
  • Device:  Android

10 hours ago, RobMc said:

Look carefully at connectors some you can take bits off 'I have a cable of 12 slots to fit' your m'bd or the cable connector? So your Motherboard has a 10 slot hole. I think you're mixing up the 20 pin slot with the 24 is it a total of 10 holes? which don't make sense


join the arrows to make 24 when done should look like 20 but 24

in your case you want a 20 pin for MB  as pic shows can remove

if PSU came only 24 would need a olfa knife to cut off last 4 as shown  with yellow wire ...use a vise to hold the 20 and cut closer to the 4 pins to keep socket insulated  and the if exposed wire on 4 part  wrap black electric tape to insulate them from each other or shortting out against case causing a fire.

you were warned  protect  home, life  by insulating electric connections

Edited by KaptCrunch
safety warning against loss of home or life
Link to comment
Share on other sites



  • Member ID:  389
  • Group:  *** Clan Members
  • Followers:  44
  • Topic Count:  290
  • Topics Per Day:  0.05
  • Content Count:  4407
  • Content Per Day:  0.83
  • Reputation:   3554
  • Achievement Points:  36061
  • Solved Content:  0
  • Days Won:  38
  • Joined:  09/14/09
  • Status:  Offline
  • Last Seen:
  • Birthday:  01/01/1970
  • Device:  Android

7 hours ago, Slackernet said:

it seems to be marked well what goes where

gigabye power supply 850.JPG

news flash   can shove a PCI-e  8 in MB 8 extra power socket  but not other way round i found out the hard way  with cooked MB  curtisy of cooler master PSU marked them wrong

Link to comment
Share on other sites



  • Member ID:  340
  • Group:  *** Clan Members
  • Followers:  25
  • Topic Count:  75
  • Topics Per Day:  0.01
  • Content Count:  1077
  • Content Per Day:  0.20
  • Reputation:   389
  • Achievement Points:  6660
  • Solved Content:  0
  • Days Won:  0
  • Joined:  09/10/09
  • Status:  Offline
  • Last Seen:
  • Birthday:  06/21/1971
  • Device:  Android

Ah. The 12 slot thingy is from my graphics card,  and doesn't want to be split

Link to comment
Share on other sites



  • Member ID:  22372
  • Group:  *** Clan Members
  • Followers:  16
  • Topic Count:  63
  • Topics Per Day:  0.02
  • Content Count:  633
  • Content Per Day:  0.19
  • Reputation:   720
  • Achievement Points:  6167
  • Solved Content:  0
  • Days Won:  2
  • Joined:  01/25/15
  • Status:  Offline
  • Last Seen:
  • Birthday:  06/12/1976
  • Device:  Windows

what card you have?   if you are not overclocking you dont need to put   2 cables in your card one will be good   but what card you have an what cables come with it.



does your card have 8+8  6=+6 or  less?

Link to comment
Share on other sites



  • Member ID:  389
  • Group:  *** Clan Members
  • Followers:  44
  • Topic Count:  290
  • Topics Per Day:  0.05
  • Content Count:  4407
  • Content Per Day:  0.83
  • Reputation:   3554
  • Achievement Points:  36061
  • Solved Content:  0
  • Days Won:  38
  • Joined:  09/14/09
  • Status:  Offline
  • Last Seen:
  • Birthday:  01/01/1970
  • Device:  Android

Quote

Ah. The 12 slot thingy is from my graphics card,  and doesn't want to be split

Bazza sounds if have a brand name PC with proprietary parts

any chance a pic of what you want to do

so we can be on the same page and get this done right

not sure were talking same thing

Edited by KaptCrunch
Link to comment
Share on other sites



  • Member ID:  1238
  • Group:  *** Clan Members
  • Followers:  35
  • Topic Count:  1207
  • Topics Per Day:  0.24
  • Content Count:  6082
  • Content Per Day:  1.19
  • Reputation:   4981
  • Achievement Points:  50713
  • Solved Content:  0
  • Days Won:  11
  • Joined:  03/12/10
  • Status:  Offline
  • Last Seen:
  • Device:  Windows


  • Member ID:  340
  • Group:  *** Clan Members
  • Followers:  25
  • Topic Count:  75
  • Topics Per Day:  0.01
  • Content Count:  1077
  • Content Per Day:  0.20
  • Reputation:   389
  • Achievement Points:  6660
  • Solved Content:  0
  • Days Won:  0
  • Joined:  09/10/09
  • Status:  Offline
  • Last Seen:
  • Birthday:  06/21/1971
  • Device:  Android

My graphics is 1060 6gig geforce, i think,  but it's moot now,  as i think my motherboard may be fried.  I have a multi meter,  but i have no idea what to do with that so.... i think I'm fooked for a long time

Link to comment
Share on other sites



  • Member ID:  389
  • Group:  *** Clan Members
  • Followers:  44
  • Topic Count:  290
  • Topics Per Day:  0.05
  • Content Count:  4407
  • Content Per Day:  0.83
  • Reputation:   3554
  • Achievement Points:  36061
  • Solved Content:  0
  • Days Won:  38
  • Joined:  09/14/09
  • Status:  Offline
  • Last Seen:
  • Birthday:  01/01/1970
  • Device:  Android

4 hours ago, Bazza said:

My graphics is 1060 6gig geforce, i think,  but it's moot now,  as i think my motherboard may be fried.  I have a multi meter,  but i have no idea what to do with that so.... i think I'm fooked for a long time

ask Rob to come round for he handy at things electric

Link to comment
Share on other sites



  • Member ID:  2902
  • Group:  *** Clan Members
  • Followers:  15
  • Topic Count:  15
  • Topics Per Day:  0.00
  • Content Count:  228
  • Content Per Day:  0.05
  • Reputation:   213
  • Achievement Points:  1667
  • Solved Content:  0
  • Days Won:  1
  • Joined:  10/17/11
  • Status:  Offline
  • Last Seen:
  • Birthday:  06/11/1952
  • Device:  Windows

The 10 pin connection on the PS is for a proprietary motherboard main power connection.  MB makers do this so you have to buy "their" stuff.  Dell is bad about this. That being said don't use it unless your MOBO calls for it. For your "12" pin connection on the gpu you will use 2 cables.  They will be the "6+2" cables but just use the 6 part of each cable to connect to the gpu.  The other end having "8" connectors plug in to any of the "CPU/PCI-E" connections of your PS.  Hope this helps.

Knowing what MOBO you are using would help us a lot.

Edited by CW4
Link to comment
Share on other sites



  • Member ID:  389
  • Group:  *** Clan Members
  • Followers:  44
  • Topic Count:  290
  • Topics Per Day:  0.05
  • Content Count:  4407
  • Content Per Day:  0.83
  • Reputation:   3554
  • Achievement Points:  36061
  • Solved Content:  0
  • Days Won:  38
  • Joined:  09/14/09
  • Status:  Offline
  • Last Seen:
  • Birthday:  01/01/1970
  • Device:  Android

CW4

Quote

 The other end having "8" connectors plug in to any of the "CPU/PCI-E" connections of your PS.  Hope this helps.

no way in hell MIX  CPU/PCI-E for are not same pinout the polarity are reversed  an kiss good by what you plug it in.....see dia gram  below


you can plug PCIe in MB power(ESP-12v) but not  MB power in PCIe won't go

I found by experience, notice the yellow is 12+

this why told him to use multimeter to check voltage be fore connecting
